LabWorks Platform


LabWorks Platform

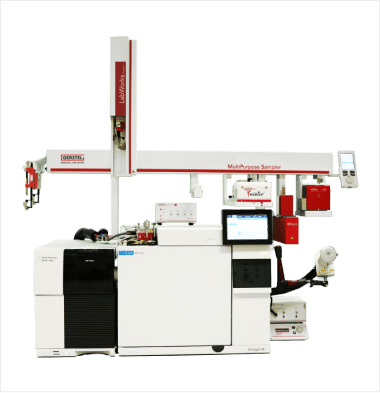

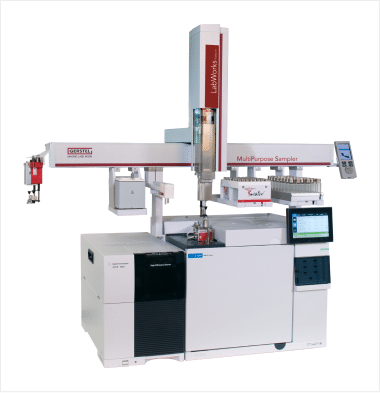

The GERSTEL MPS LabWorks Platform is the only truly universal system for sample introduction for GC-MS. It offers unmatched capabilities and flexibility to solve your most critical challenges.

The basic platform offers 10 automated sample introduction techniques without the need for a separate device for each technique. Liquid, headspace, SPME injection and thermal desorption are included without requiring additional bench space.

10 Automated Injection Techniques
  1. Liquid injection
  2. Large volume injection
  3. Headspace injection
  4. Multiple headspace injection
  5. Twister
  6. TF-SPME
  7. Direct thermal extraction
  8. Sorbent tubes
  9. Liquid sample in micro-vials
  10. Sample preparation

GERSTEL MPS LabWorks Platform Expansion Options

The GERSTEL MPS LabWorks Platform includes 10 sample introduction techniques and can be expanded to include over 20 additional analytical techniques. The modular upgrade approach allows you to “future-proof” your investment so that you can continuously address your critical challenges.

Expansion Options

  • Solid phase microextraction (SPME)
  • SPME Arrow
  • Multiple SPME injection
  • Dynamic Headspace (DHS)
  • Fully evaporative dynamic headspace (FEDHS)
  • Dynamic headspace with large vessels (DHS-L)
  • Micro-solid phase extraction (μSPE)
  • Pyrolysis- pulsed and ramped (PYRO)
  • Automatic liner exchange (ALEX)

Automated sample preparation techniques

  • Dilution
  • Standard addition
  • Derivatization
  • Accurate add
  • Heated agitation or stirring
  • Calibration curve preparation
  • Filtration
  • Evaporation
  • Weighing
  • Mixing
  • Centrifugation
  • Solid phase extraction
  • Ultrasonication

Additional modules for advanced troubleshooting

  • Olfactory detection
  • Preparative fraction collector (PFC)
  • Cold trapping system (CTS)
  • Multidimensional 1D/2D GC
